PRODUCT DESCRIPTION

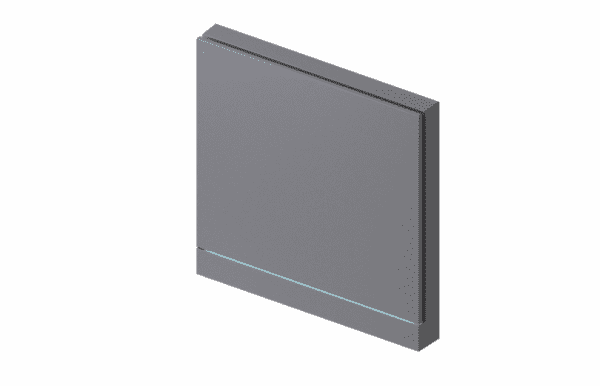

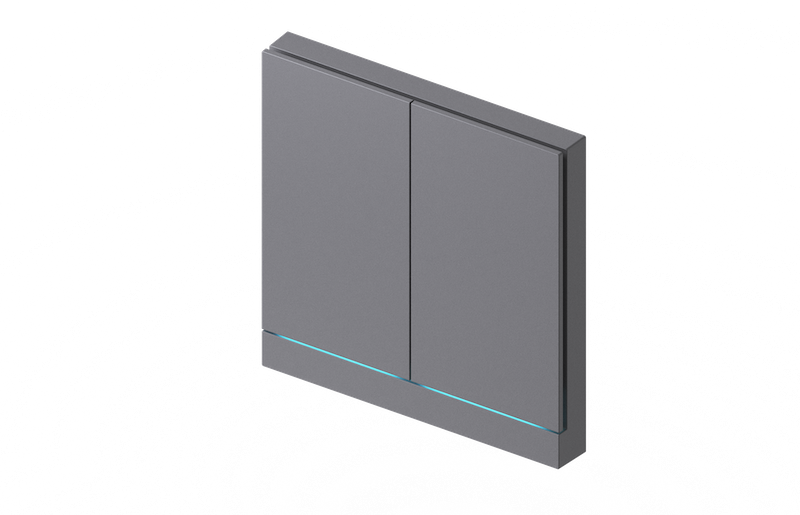

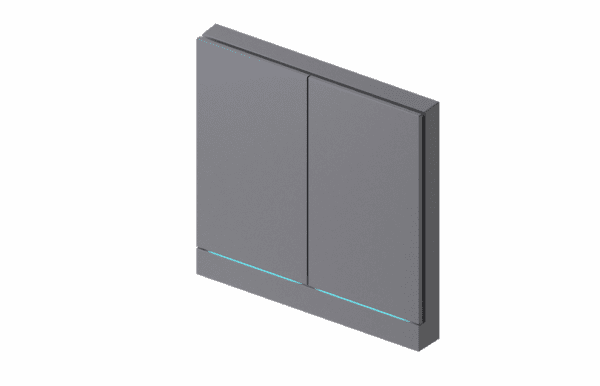

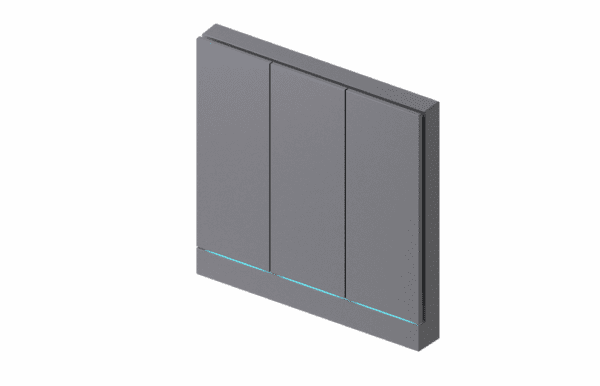

The LifeSmart BLEND switch pro Single Live Smart Switch is designed with a 16A magnetic latching relay, letting the switch keep unglued even after 38880 times. It’s no need for external wiring which is friendly for both the pre-installation market and the post-installation market of the decoration. BLEND Single Live Switch Series has three types of light buttons, one light switch, two light switches, and triple light switches, which support the free combination of smart items and scenes.
FEATURES
Adapts to Perfect line Plate: With the perfect line plate, we can allow the aligning of multiple switches and sockets in a perfectly straight, evenly-spaced line.
DIY Magic LED Strip: Users can customize the color and light effect of the LED strip to indicate the status when the button is pressed.
Won Many Design Awards: BLEND Switch is also good for the room aesthetics. Its simple modern design won IF Design Award 2021, Comtemporary Good Design Winner 2021, and Roddot 2022.
Dual control, multiple control: Combined with the LifeSmart Smart Station and the free LifeSmart App, you have infinite control possibilities. It also works with voice control with Apple HomeKit, Google Assistant, Amazon Alexa.
SPECIFICATION
| General | |
| Model Number | LS240-LW1/2/3、LS240-LG1/2/3 |

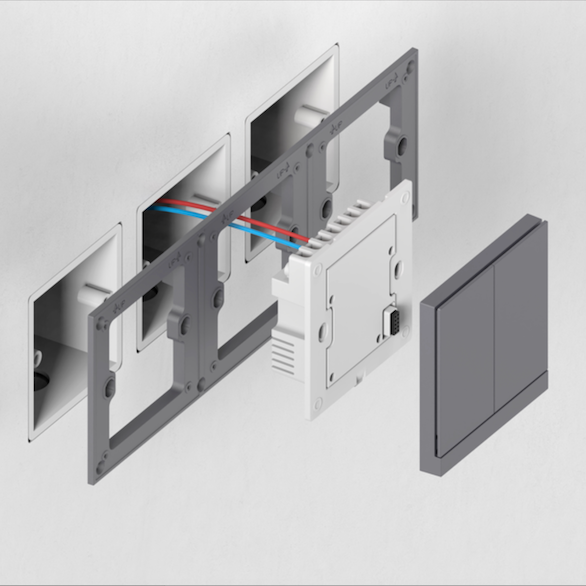

| Installation | In-wall concealed with 86 back box |
| Wiring | Live wire access, first line live wire exit, second line live wire exit, third line live wire exit |
| Operating Temperature | -5~45°C |
| Operating Humidity | 5~90% |
| Power Supply | 90V-250V AC ， 5V-30V DC |
| Power Consumption | <1mW |
| Maximum Overload | Resistive load: 500W per channel |
| Inductive/Capacitive load:200Wperchannel |
| Construction | |
| Color | White/Gray |
| Dimensions | 86*86*36mm |
| Casing | Bottom Cover: PC, Top Cover:ABS+PC |
| Radio | |
| Radio Protocol | CoSS |
| Range(Open field) | 200m |
| Range(Open field) | 200m |
